JCB 505-20
5,500lb Telehandler

JCB 505-20 Telehandler – Compact, Powerful, and Ready for Rent

​

Rent the JCB 505-20 Loadall Telehandler – the perfect combination of compact size and heavy-duty performance for construction sites, warehouses, landscaping, and agricultural jobs. With its 20 ft lift height, 5,500 lb (2,495 kg) maximum lift capacity, and exceptional maneuverability, this telehandler gets into tight spaces where larger machines can’t.


Key Features & Benefits:

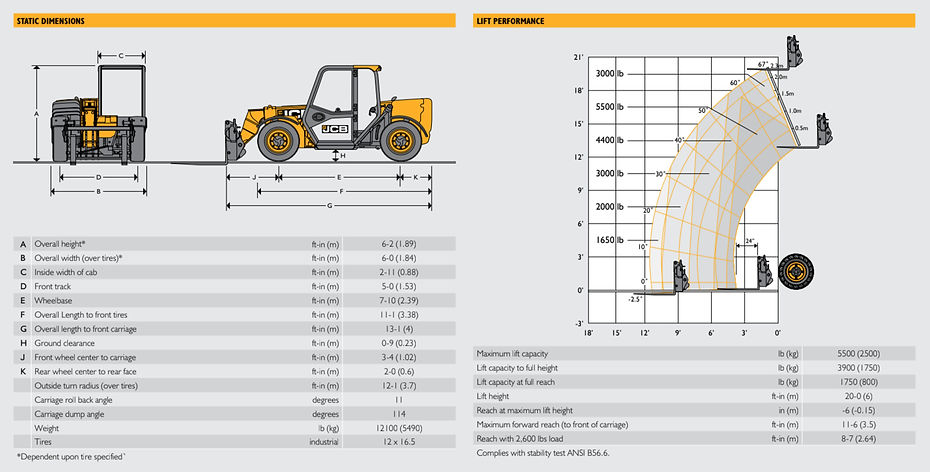

• Maximum lift height: 20’ (6.1 m)

• Maximum lift capacity: 5,500 lbs (2,495 kg) – 3,900 lbs at full height - 1,750 lbs at full reach

• Compact dimensions: Only 6’2” wide × 6’3” high – fits through standard doorways

• 4WD and 4WS (4-wheel steer) with crab, front-wheel, and coordinated steering modes

• Powerful 74 hp JCB engine (no DEF required)

• Single joystick servo controls for fast, precise operation

• ROPS/FOPS certified cab with heat & A/C for all-day comfort

• Standard skid steer plate for attachment compatibility


Ideal for loading/unloading trucks, placing materials on multi-story builds, warehouse stocking, farm work, or any job requiring reach and versatility in confined areas.
